はじめに
過去に、現用で動いているIPsecを構成しているRTの片方を更改する作業を行いました。新しい機器に代わるものの、設定は引き継がれる設計だったため、予め設定を投入して電源を入れておき、ケーブルを振り替える方法で切り替えを行いました。
この作業で重要なポイントは、「IPsecのピアはどの程度の時間で切り替わるか」ということ。機器を取り換えた後に再構成するまでの時間が、システムのダウン時間に直結することになります。切り替えの結果は、５～１０分程度の時間を要しました。
実際の切り替えの時にはPPPoEも再接続されたので、「機器の入れ替えを入れ替えとピアの再構成に時間がかかったのか」「PPPoEの再接続で時間を消費したのか」がハッキリしない状況になりました。なお、PPPoEは「show ppp all」でIPが取得できていることは確認できましたが、対向のグローバルIPアドレスに飛ぶはずのPingが飛ばないという事象が発生していました。「PPPoEのせいか？」という疑念はあるものの、前者の機器を入れ替えるとピア再構成に時間がかかる可能性もあるので、今回検証しました。
なお、上記の切り替えの本番時には「clear crypto isakmp 」でピアのリセットを行い、IPsec通信を発生させるパケットをエンド同士で流し続けていました。リセットをかけた後、IPsecの該当パケットを投げることでピアを再構成することは検証で確認していましたが、本番前の検証時は機器を変えず同じRT同士で見ていたので、機器を変えるということを今回やろうと思いました。
検証
使用するルータはCisco 891fj です。IOSはversion 15.4です。
構成

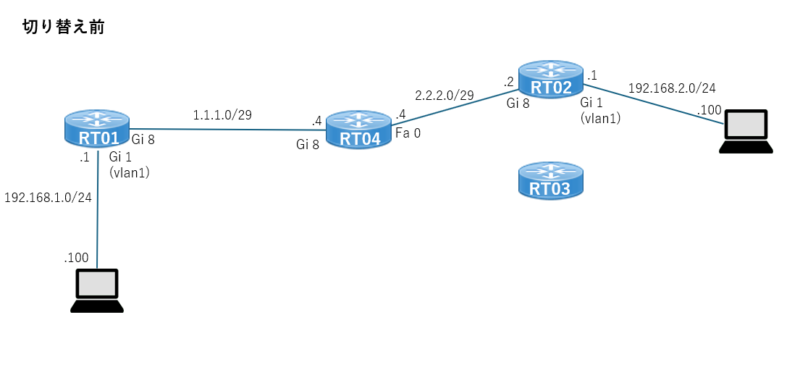

切り替え前
元の状態の構成図は下記の通り。
切り替え後
切り替え後の構成図は下記。
RT02とRT03のIPsec設定は同じため、ケーブルを差し替えるだけでエンド同士の通信はできる想定。
切り替わりに必要な時間がどの程度必要か本検証で確認したい。
設定
※管理用(ログイン用)にVLAN99を作成しています。VLAN99はIPsecの設定には関係はありません。
流し込みConfig
以下、検証設定のために実行コマンドです。
RT03はRT02と同じものを使うので割愛します。
RT01 流し込みconfig
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 |
conf t crypto isakmp policy 1 encryption aes hash sha authentication pre-share group 2 crypto isakmp key Password address 2.2.2.2 crypto isakmp keepalive 30 periodic crypto ipsec transform-set IPSEC esp-aes esp-sha-hmac mode tunnel crypto map ipsec-setting 1 ipsec-isakmp set peer 2.2.2.2 set transform-set IPSEC match address Allow-ipsec interface GigabitEthernet8 no shutdown ip mtu 1372 ip tcp adjust-mss 1332 ip address 1.1.1.1 255.255.255.248 crypto map ipsec-setting interface Vlan1 ip address 192.168.1.1 255.255.255.0 ip access-list extended Allow-ipsec 10 permit ip 192.168.1.0 0.0.0.255 192.168.2.0 0.0.0.255 ip route 0.0.0.0 0.0.0.0 GigabitEthernet8 |
RT02 流し込みconfig
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 |
conf t crypto isakmp policy 1 encryption aes hash sha authentication pre-share group 2 crypto isakmp key Password address 1.1.1.1 crypto isakmp keepalive 30 periodic crypto ipsec transform-set IPSEC esp-aes esp-sha-hmac mode tunnel crypto map ipsec-setting 1 ipsec-isakmp set peer 1.1.1.1 set transform-set IPSEC match address Allow-ipsec interface GigabitEthernet8 no shutdown ip address 2.2.2.2 255.255.255.248 ip mtu 1372 ip tcp adjust-mss 1332 crypto map ipsec-setting interface Vlan1 ip address 192.168.2.1 255.255.255.0 ip access-list extended Allow-ipsec 10 permit ip 192.168.2.0 0.0.0.255 192.168.1.0 0.0.0.255 ip route 0.0.0.0 0.0.0.0 GigabitEthernet8 |
RT04 流し込みconfig
|
1 2 3 4 5 6 7 8 9 |
conf t interface GigabitEthernet8 no shutdown ip address 1.1.1.4 255.255.255.248 interface FastEthernet0 no shutdown ip address 2.2.2.4 255.255.255.248 |
sh run
sh runの実行結果を載せておきます。
RT01 # sh run
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 |
RT01#sh run Building configuration... Current configuration : 2524 bytes ! ! Last configuration change at 16:03:22 UTC Thu Mar 13 2025 by admin ! version 15.4 service timestamps debug datetime msec service timestamps log datetime msec service password-encryption ! hostname RT01 ! boot-start-marker boot-end-marker ! ! logging buffered 512000 enable secret 5 $1$WJFk$6QRnNnLWC.ajxzqfzkYi4/ ! no aaa new-model memory-size iomem 15 ! ! ! ! ! ! ! ! ! ! ! ! ! ! no ip domain lookup ip domain name orange.local ip cef no ipv6 cef ! ! ! ! ! multilink bundle-name authenticated ! ! ! ! ! ! ! ! cts logging verbose license udi pid C891FJ-K9 sn FGL2505LDK2 ! ! vtp mode transparent username admin password 7 1218011A1B05 ! ! ! ! ! vlan 99 ! ip ssh version 2 ! ! crypto isakmp policy 1 encr aes authentication pre-share group 2 crypto isakmp key Password address 2.2.2.2 crypto isakmp keepalive 30 periodic ! ! crypto ipsec transform-set IPSEC esp-aes esp-sha-hmac mode tunnel ! ! ! crypto map ipsec-setting 1 ipsec-isakmp set peer 2.2.2.2 set transform-set IPSEC match address Allow-ipsec ! ! ! ! ! ! interface BRI0 no ip address encapsulation hdlc shutdown isdn termination multidrop ! interface FastEthernet0 no ip address shutdown duplex auto speed auto ! interface GigabitEthernet0 no ip address ! interface GigabitEthernet1 no ip address ! interface GigabitEthernet2 no ip address ! interface GigabitEthernet3 no ip address ! interface GigabitEthernet4 no ip address ! interface GigabitEthernet5 no ip address ! interface GigabitEthernet6 no ip address ! interface GigabitEthernet7 switchport access vlan 99 no ip address ! interface GigabitEthernet8 ip address 1.1.1.1 255.255.255.248 ip mtu 1372 ip tcp adjust-mss 1332 duplex auto speed auto crypto map ipsec-setting ! interface Vlan1 ip address 192.168.1.1 255.255.255.0 ! interface Vlan99 ip address 192.168.99.3 255.255.255.0 ! interface Async3 no ip address encapsulation slip ! ip forward-protocol nd no ip http server no ip http secure-server ! ! ip route 0.0.0.0 0.0.0.0 GigabitEthernet8 ! ip access-list extended Allow-ipsec permit ip 192.168.1.0 0.0.0.255 192.168.2.0 0.0.0.255 ! ! ! control-plane ! ! mgcp behavior rsip-range tgcp-only mgcp behavior comedia-role none mgcp behavior comedia-check-media-src disable mgcp behavior comedia-sdp-force disable ! mgcp profile default ! ! ! ! ! ! ! line con 0 login local no modem enable line aux 0 line 3 modem InOut speed 115200 flowcontrol hardware line vty 0 4 login local transport input all ! scheduler allocate 20000 1000 ! ! ! end |
RT01#sh run
Building configuration…
RT02 # sh run
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 |
RT02#sh run Building configuration... Current configuration : 2500 bytes ! ! Last configuration change at 15:51:33 UTC Thu Mar 13 2025 by admin ! version 15.4 service timestamps debug datetime msec service timestamps log datetime msec service password-encryption ! hostname RT02 ! boot-start-marker boot-end-marker ! ! enable secret 5 $1$Vkhk$mzfGeEt/yBY7LMijPoV21/ ! no aaa new-model memory-size iomem 15 ! ! ! ! ! ! ! ! ! ! ! ! ! ! no ip domain lookup ip domain name orange.local ip cef no ipv6 cef ! ! ! ! ! multilink bundle-name authenticated ! ! ! ! ! ! ! ! cts logging verbose license udi pid C891FJ-K9 sn FGL2505LDK4 ! ! vtp mode transparent username admin password 7 070E25414707 ! ! ! ! ! vlan 99 ! ip ssh version 2 ! ! crypto isakmp policy 1 encr aes authentication pre-share group 2 crypto isakmp key Password address 1.1.1.1 crypto isakmp keepalive 30 periodic ! ! crypto ipsec transform-set IPSEC esp-aes esp-sha-hmac mode tunnel ! ! ! crypto map ipsec-setting 1 ipsec-isakmp set peer 1.1.1.1 set transform-set IPSEC match address Allow-ipsec ! ! ! ! ! ! interface BRI0 no ip address encapsulation hdlc shutdown isdn termination multidrop ! interface FastEthernet0 no ip address shutdown duplex auto speed auto ! interface GigabitEthernet0 no ip address ! interface GigabitEthernet1 no ip address ! interface GigabitEthernet2 no ip address ! interface GigabitEthernet3 no ip address ! interface GigabitEthernet4 no ip address ! interface GigabitEthernet5 no ip address ! interface GigabitEthernet6 no ip address ! interface GigabitEthernet7 switchport access vlan 99 no ip address ! interface GigabitEthernet8 ip address 2.2.2.2 255.255.255.248 ip mtu 1372 ip tcp adjust-mss 1332 duplex auto speed auto crypto map ipsec-setting ! interface Vlan1 ip address 192.168.2.1 255.255.255.0 ! interface Vlan99 ip address 192.168.99.4 255.255.255.0 ! interface Async3 no ip address encapsulation slip ! ip forward-protocol nd no ip http server no ip http secure-server ! ! ip route 0.0.0.0 0.0.0.0 GigabitEthernet8 ! ip access-list extended Allow-ipsec permit ip 192.168.2.0 0.0.0.255 192.168.1.0 0.0.0.255 ! ! ! control-plane ! ! mgcp behavior rsip-range tgcp-only mgcp behavior comedia-role none mgcp behavior comedia-check-media-src disable mgcp behavior comedia-sdp-force disable ! mgcp profile default ! ! ! ! ! ! ! line con 0 login local no modem enable line aux 0 line 3 modem InOut speed 115200 flowcontrol hardware line vty 0 4 login local transport input all ! scheduler allocate 20000 1000 ! ! ! end |
RT04 # sh run
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 |
RT04#sh run Building configuration... Current configuration : 1991 bytes ! ! Last configuration change at 09:30:07 UTC Thu Mar 13 2025 by admin ! version 15.4 service timestamps debug datetime msec service timestamps log datetime msec service password-encryption ! hostname RT04 ! boot-start-marker boot-end-marker ! ! enable secret 5 $1$bAlC$CYqdi73zMml1PZfAOldV1/ ! no aaa new-model memory-size iomem 15 ! ! ! ! ! ! ! ! ! ! ! ! ! ! no ip domain lookup ip domain name orange.local ip cef no ipv6 cef ! ! ! ! ! multilink bundle-name authenticated ! ! ! ! ! ! ! ! cts logging verbose license udi pid C891FJ-K9 sn FGL2505LDKP ! ! vtp mode transparent username admin password 7 020700560208 ! ! ! ! ! vlan 99 ! ip ssh version 2 ! ! ! ! ! ! ! ! ! ! ! ! interface BRI0 no ip address encapsulation hdlc shutdown isdn termination multidrop ! interface FastEthernet0 ip address 2.2.2.4 255.255.255.248 duplex auto speed auto ! interface GigabitEthernet0 no ip address ! interface GigabitEthernet1 no ip address ! interface GigabitEthernet2 no ip address ! interface GigabitEthernet3 no ip address ! interface GigabitEthernet4 no ip address ! interface GigabitEthernet5 no ip address ! interface GigabitEthernet6 no ip address ! interface GigabitEthernet7 switchport access vlan 99 no ip address ! interface GigabitEthernet8 ip address 1.1.1.4 255.255.255.248 duplex auto speed auto ! interface Vlan1 no ip address ! interface Vlan99 ip address 192.168.99.6 255.255.255.0 ! interface Async3 no ip address encapsulation slip ! ip forward-protocol nd no ip http server no ip http secure-server ! ! ! ip access-list extended Allow-ipsec ! ! ! control-plane ! ! mgcp behavior rsip-range tgcp-only mgcp behavior comedia-role none mgcp behavior comedia-check-media-src disable mgcp behavior comedia-sdp-force disable ! mgcp profile default ! ! ! ! ! ! ! line con 0 login local no modem enable line aux 0 line 3 modem InOut speed 115200 flowcontrol hardware line vty 0 4 login local transport input all ! scheduler allocate 20000 1000 ! ! ! end |
確認①（切り替え前)
まず、切り替え前の構成のときのステータス確認。「sh crypto isakmp sa」と「sh crypto ipsec sa」でIPsecが構成できている状態であることを確認します。
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 |
RT01#sh crypto isakmp sa IPv4 Crypto ISAKMP SA dst src state conn-id status 2.2.2.2 1.1.1.1 QM_IDLE 2003 ACTIVE IPv6 Crypto ISAKMP SA RT01#sh crypto ipsec sa interface: GigabitEthernet8 Crypto map tag: ipsec-setting, local addr 1.1.1.1 protected vrf: (none) local ident (addr/mask/prot/port): (192.168.1.0/255.255.255.0/0/0) remote ident (addr/mask/prot/port): (192.168.2.0/255.255.255.0/0/0) current_peer 2.2.2.2 port 500 PERMIT, flags={origin_is_acl,} #pkts encaps: 54, #pkts encrypt: 54, #pkts digest: 54 #pkts decaps: 30, #pkts decrypt: 30, #pkts verify: 30 #pkts compressed: 0, #pkts decompressed: 0 #pkts not compressed: 0, #pkts compr. failed: 0 #pkts not decompressed: 0, #pkts decompress failed: 0 #send errors 0, #recv errors 0 local crypto endpt.: 1.1.1.1, remote crypto endpt.: 2.2.2.2 plaintext mtu 1310, path mtu 1372, ip mtu 1372, ip mtu idb GigabitEthernet8 current outbound spi: 0x691C82E3(1763476195) PFS (Y/N): N, DH group: none inbound esp sas: spi: 0x9A9F4B68(2594130792) transform: esp-aes esp-sha-hmac , in use settings ={Tunnel, } conn id: 1, flow_id: Onboard VPN:1, sibling_flags 80004040, crypto map: ipsec-setting sa timing: remaining key lifetime (k/sec): (4222977/2645) IV size: 16 bytes replay detection support: Y Status: ACTIVE(ACTIVE) inbound ah sas: inbound pcp sas: outbound esp sas: spi: 0x691C82E3(1763476195) transform: esp-aes esp-sha-hmac , in use settings ={Tunnel, } conn id: 2, flow_id: Onboard VPN:2, sibling_flags 80004040, crypto map: ipsec-setting sa timing: remaining key lifetime (k/sec): (4222973/2645) IV size: 16 bytes replay detection support: Y Status: ACTIVE(ACTIVE) outbound ah sas: outbound pcp sas: RT01#ping 192.168.2.1 source 192.168.1.1 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.168.2.1, timeout is 2 seconds: Packet sent with a source address of 192.168.1.1 !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 1/2/4 ms |
確認②（切り替え後)
ケーブルをRT02からRT03に振り替えます。以下のコマンドでIPsecをリセットします。
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 |
RT01#clear crypto isakmp RT01#clear crypto sa RT01#sh crypto ipsec sa interface: GigabitEthernet8 Crypto map tag: ipsec-setting, local addr 1.1.1.1 protected vrf: (none) local ident (addr/mask/prot/port): (192.168.1.0/255.255.255.0/0/0) remote ident (addr/mask/prot/port): (192.168.2.0/255.255.255.0/0/0) current_peer 2.2.2.2 port 500 PERMIT, flags={origin_is_acl,} #pkts encaps: 0, #pkts encrypt: 0, #pkts digest: 0 #pkts decaps: 0, #pkts decrypt: 0, #pkts verify: 0 #pkts compressed: 0, #pkts decompressed: 0 #pkts not compressed: 0, #pkts compr. failed: 0 #pkts not decompressed: 0, #pkts decompress failed: 0 #send errors 0, #recv errors 0 local crypto endpt.: 1.1.1.1, remote crypto endpt.: 2.2.2.2 plaintext mtu 1310, path mtu 1372, ip mtu 1372, ip mtu idb GigabitEthernet8 current outbound spi: 0x0(0) PFS (Y/N): N, DH group: none inbound esp sas: inbound ah sas: inbound pcp sas: outbound esp sas: outbound ah sas: outbound pcp sas: RT01#ping 192.168.2.1 source 192.168.1.1 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.168.2.1, timeout is 2 seconds: Packet sent with a source address of 192.168.1.1 ..... Success rate is 0 percent (0/5) |
ケーブル自体は振り替わっていて、設定も入っているので、あとはどの程度の時間がかかるかを見ます。
対向に対してPingを行います。すると、すんなりPingが成功しました。
|
1 2 3 4 5 6 7 8 9 10 11 |
RT01#ping 2.2.2.2 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 2.2.2.2, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/4 ms RT03#ping 1.1.1.1 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 1.1.1.1, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 1/2/4 ms |
ステータス確認。IPsecができていますね。
|
1 2 3 4 5 6 |
RT01#sh crypto isakmp sa IPv4 Crypto ISAKMP SA dst src state conn-id status 2.2.2.2 1.1.1.1 QM_IDLE 2004 ACTIVE IPv6 Crypto ISAKMP SA |
結論
この後再度RT02に戻す、またRT03に変えるを繰り替えましたが、切り替えに5分以上かかるといったことはなかったです。ただ、対向のグローバル(今回は1.1.1.1、2.2.2.2)に行うことで切り替わりが起ったので、すぐにIPsecのstateを「QM_IDLE」にするには、対向への疎通性がキーになりそうです。既に書きましたが、PPPoEはできているように見えていましたが、実際に通信ができているようになったという確認まではできていなかったので、このあたりの疎通性をもう少し見れていれば良かったです。
とはいえ、この手の切り替えで学べたのは、すぐに切り替わるだろうという楽観は禁物ということです。
